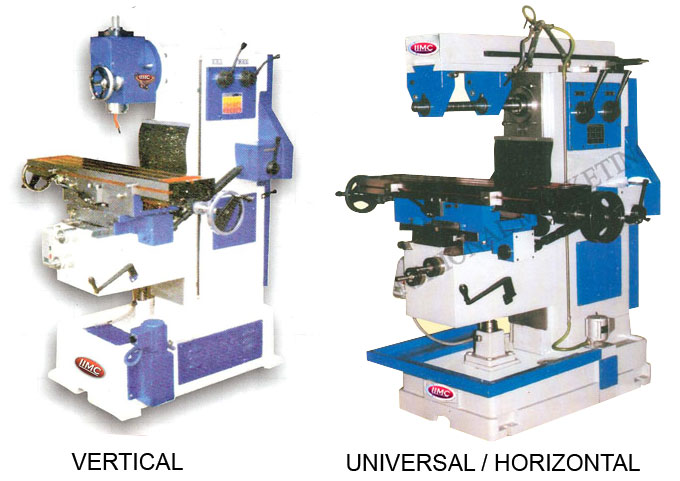

Universal/Horizontal/Vertical Milling Machine














Technical Data

  Model GM 1U GM 1.5U / 1.5V GM 2U / 2V
  TABLE MM MM MM
  Working Surface 1050 x 240 1140 x 255 1270 x 300
  No. Of T. Slots/ Size 3 x 14 3 x 14 3 x 16
  Centre Distance between T-Slots 60 60 70
  Swivel 45 45 45
  Longitudinal Travel X 550 600 700
  Cross Travel Y 170 230 255
  Vertical Travel Z 340 410 450
  SPINDLE
  NO. Of Spindle Speeds 9 9 9
  Range of Spindle Speeds 58-768 58-768 63- 727
  Spindle Taper ISO 40 ISO 40 ISO 40
  Arbor Diameter 25.4 25.4 25.4
  FEED
  No of feeds 3 3 3
  ELECTRICALS
  Main Motor 1440 RPM 2 H.P 2 H.P 3 H.P
  Coolant Pump Motor 0.1 H.P. 0.1 H.P. 0.1 H.P.
  SHIPPING DIMENSIDNS
  Length x Width x Height (cm) 132 x 117 x 170 140 x 125 x 195 173 x 137 x 220
  Net Weight (Kg.) 1000 1250 2000
  Gross Weight (Kg.) 1300 1600 2500



Standard Accessories

• Handle
• Machine Pully



Optional Accessories

• Vertical attachment head, Slotting attacment, Rack cutting attacment, Dividing Head, Rotary table, Milling machine vice, Machine lamp.



Specifications are not binding and are subject to modification and change without notice. The standard and optional accessories listed are provisional. Final list will be as per our offer.

RIGID. RUGGED, RELIABLE

These high precision turret ram type milling machines are built with proven designs, tight engineering standards and quality materials. In addition to these there are features such as hardened ways and turcite coating on saddle ways. These make the machines rigid and reliable.
