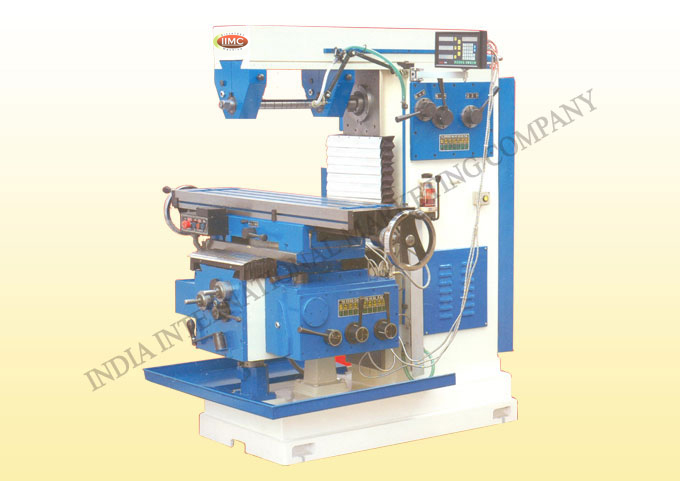

All Geared Milling Machines : UNIVERSAL / HORIZONTAL












Salient Features

All Geared Universal and Vertical Milling Machines with 12 speeds head. 18 feeds in X.Y.Z. Movement, one repaid travers, complete Electricals, Motrors I.S.I Make, Including Electrical Control, panel, Coolant pump, Bellows, Lubrication Systems with manual Pump, Tapper Jibs, Wipers Stips, Vertical and cross feeds single Lever drive.



Highlight

In Fabrication of IIMC Milling Machines we used High Quality Close grained cast lron. All slides Grinded on Slideway Grinder and Closely scraped. All Gears made of Ncihel Chroms Steel and hardened. Steel Sliding gears carried on splined shafts, shafts Spindle and Arbor made of alloy steel hardened and ground. All the shafts and screw made out of alloy steel. Maximum simplicity of mechanical design ease of control.



Specifications All Geared Universal Milling Machines

  Model AGM 2U AGM 3U AGM 4U AGM 5U
  TABLE
  Working Surface 1300 x 300 1400 x 330 1600 x 350 1800 x 400
  T,.lot Nos/Size 3.16 3.22 T NUT 3.22 T NUT 3.22 T NUT
  T.Slot Centre 70 80 85 90
  Swivel 45 45 45 45
  Longitudinal Travel by power X 700 800 1000 1200
  Cross Travel by power Y 215 260 340 380
  Vertical Trave by power Z 450 510 600 650
  FEEDS
  No. of Feeds 18 18 18 18
  Range of Longitudinal Feed / Min. 23-420 23-420 23-420 23-420
  Range of Cross Feed / Min. 23-420 23-420 23-420 23-420
  Range of Vertical Feed / Min. 3-70 3-70 3-70 3-70
  No.of Rapid Feed. 1 1 1 1
  Rapid Long & Cross / Min. 1050 1050 1050 1050
  Rapid Vertical/Min. 175 175 175 175
  SPINDLE
  No. of Spindle Speeds. 12 12 12 12
  Range of Spindle Speeds. 40 to 1200 RPM 40 to 1200 RPM 40 to 1200 RPM 40 to 1200 RPM
  Spindle Taper ISO -40 ISO -40 ISO -40 ISO -40
  Arbor Diameter 25.4 25.4 32 40
  POWER
  Main Motor 3 H.P. 5 H.P. 7.5 H.P. 10 H.P.
  Feed Motor 2 H.P. 2 H.P. 3 H.P. 3 H.P.
  Coolant Motor 0.1 H.P. 0.1 H.P. 0.1 H.P. 0.1 H.P.
  SHIPPING DIMENSIONS
  Length x Width x Height (in Cms.) 173x l37x200 182 x 160 x 218 198 x 168 x 234 210 x 180 x 255
  Net Weight K.gs. 2200 3200 3700 4500
  Gross Weight K.gs. 2600 3700 4300 5000



Standard Accessories

Main Drive Electric Motor, Feed Gear Box Electric Motor, Coolant System, Vee Belts, Control Panel, Steel Belows, First Fill Of Oils And Lubricants



Optional Accessories

Vertical Head, Parking Bracket, Slotting Attachment, Rack Cutting Attachment, Dividing Head, Rotary Table, Milling Machine Vice, Machine Lamp, DRO, Boring Head, Collet, Adapters.
