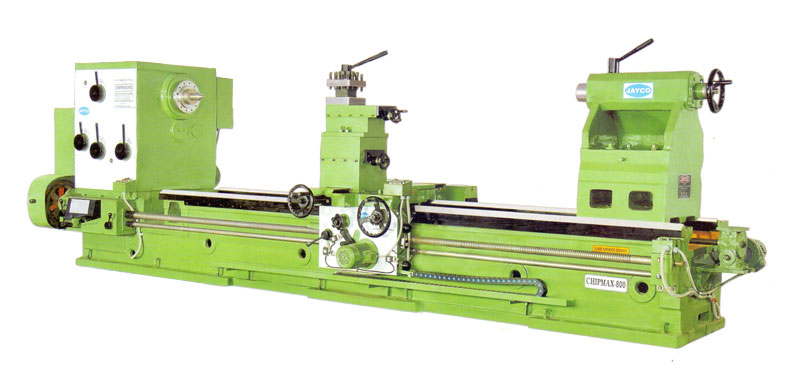

Jayco Chipmax 650 to 900












Salient Features

• Robust graded castings.
• A2-8 type spindle nose.
• Spindle bore 104 mm.
• Force lubrication system in head stock.
• All gears in head stock are made form alloy steel hardened and ground.
• Extra heavy carriage and cross slide to withstand heavy stock removal.
• Turcite-B lining on saddle guide ways for smooth running.
• Bed having 2 vee and 2 flat guide ways.
• Accuracy confirming to IS 1878 (part II) 1993.



VERSATILITY

• Built-in gap bed.
• Norton gear box for choosing a wide range of feeds & threads.
• Wide variety of optional accessories productivity.





BUILT-IN ACCURACY

• All major casting 25 grade artificially seasoned for retaining built-in accuracy
• All components precision machined on import Substituted Mother Machines
• Hardened and ground alloy steel gears mounted precision hobbed splined shafts & lay in oil bath.
  Flame hardened and ground bed for minimum wear. Alloy steel lead screw.
  Full length cross slide.
  Each machine tested to IS-1878-(Part-11) 1993.





INTERCHANGEABILITY

• All components machined using jigs & fixtures on imported Mother Machines to close tolerance thus providing easy interchangeability.





STANDARD ACCESSORIES :

Hardened bed, Harden & ground gear in head stock, Turcite-B in saddle guide-ways over the bed, Tool post key (2 Nos.) Dead centre, Centre adaptor, Vee belt, Four way tool post with rechet, Chiptray, Tail stock moving device, Electric Motor, Motor Pully with Complete Electricals, Set of spanner, Thread Dial Indicator, Universal Norton gear box with DP, Module, Inch-MM threads & change gears, Instruction, Spare parts manual & Electric Wiring Diagram.





OPTIONAL ACCESSORIES :

Face plate, Chuck plate, Coolant pump with tank & fitting, Splash guard, Revolving centre, Taper turning attachment, Steady rest, Follow rest, True chuck, Dog chuck, Rear tool post with extra long slide, Machine lamp, Motorised carriage for rapid travers, Special tail stock for heavier job, Live Tail Stock, Bearing type steady rest, Tool post grinder.





Technical Data



   Model Chipmax-650 Chipmax-750 chipmax-800 chipmax-900 chipmax-1000
   Height of center 650 mm 750 mm 800 mm 900 mm 1000 mm
   Width of bed 650 mm 800 mm 850 mm 950 mm 1050 mm
   Swing over cross slide 900 mm 1150 mm 1250 mm 1450 mm 1545 mm
   Swing over saddle 1025 mm 1300 mm 1350 mm 1600 mm 1695 mm
   Swing in gap 1625 mm 2000 mm 2050 mm 2400 mm 1895 mm
   Swing of bed 1200 mm 1500 mm 1550 mm 1800 mm 1895 mm
   Width of gap in front of face plate 300 mm 300 mm 300 mm 300 mm 300 mm

   MAIN SPINDLE
   Spindle Nose A2-11 A2-11 A2-11 A2-11 A2-11
   Spindle bore 125 mm 125 mm 125 mm 125 mm 125 mm
   Nose taper in spindle & Slive MT-6 MT-6 MT-6 MT-6 MT-6
   Optional       150 mm 150 mm
   SPEED
   Spindle
   Speed (nose / range)
   (Optional)

12
6 to 300RPM

20 to 600 RPM

12
6 to 300RPM

20 to 600 RPM

12
6 to 300RPM

20 to 600 RPM

12
6 to 300RPM

20 to 600 RPM

12
6 to 300RPM

20 to 600 RPM

   CARRIAGE
   Cross Slide Travel 700 mm 775 mm 925 mm 1100 mm 1100 mm
   Compound Slide Travel 250 mm 250 mm 325 mm 325 mm 325 mm
   Tool Shank Section 40 x 40 40 x 40 40 x 40 50 x 50 50 x 50
   LEAD SCREW
   D/A 60 mm 60 mm 60 mm 60 mm 60 mm
   Pitch 2 TPI 2 TPI 2 TPI 2 TPI
   THREADS
   MM (15 Nos.) Range 1.0 to 15 Range 1.0 to 15 Range 1.0 to 15 Range 1.0 to 15 Range 1.0 to 15
   I ncl (38 Nos.) Range 1.0 to 30 Range 1.0 to 30 Range 1.0 to 30 Range 1.0 to 30 Range 1.0 to 30
   FEEDS
   Number of feeds 50 50 50 50 50
   Longitudinal feed 0.078 to 1.166 0.078 to 1.166 0.078 to 1.166 0.078 to 1.166 0.078 to 1.166
   Cross feed 0.016 to 0.470 0.016 to 0.470 0.016 to 0.470 0.016 to 0.470 0.016 to 0.470
   TAIL STOCK
   Ram Diameter 125 mm 125 mm 125 mm 125 mm 125 mm
   Nose Taper in Ram MT-6 MT-6 MT-6 MT-6 MT-6
   Ram Travel 250 mm 250 mm 250 mm 250 mm 250 mm
   ELECTRICALS
   Power supply 415V. 3Ph, 50 Hz 415V. 3Ph, 50 Hz 415V. 3Ph, 50 Hz 415V. 3Ph, 50 Hz 415V. 3Ph, 50 Hz
   Main motor Power KW/HP 15 HP 15 HP 15 HP 15 HP 15 HP
   R.P.M. STD / Optional 1440 / 960 1440 / 960 1440 / 960 1440 / 960 1440 / 960




Note : Due to technological developments, The illustrations and specifications are not binding in detail and are subject to modifications and improvements without prior notice.
