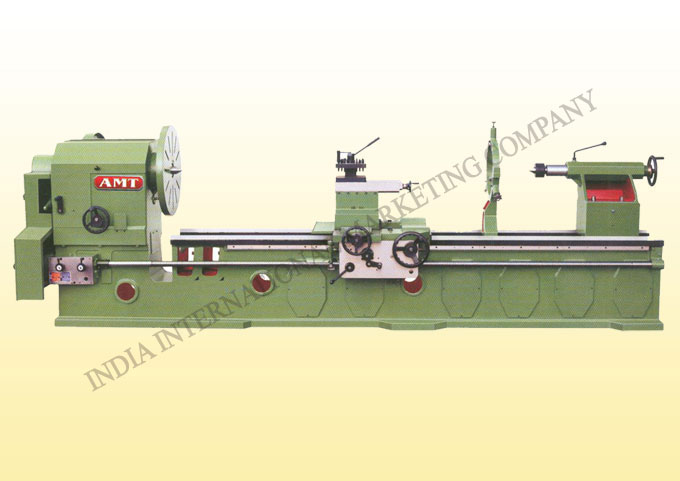

Lathe Machines - Extra Heavy Duty Lathe (Planer Type) (22' - 34')














Technical Data



   Model PL-600/1 PL-600/2 PL-700 PL-850
   Height of Centre (MM) 550(22) 600(24) 700(28) 850(34)
   Bed Width (MM) 600(24) 650(26) 750(30) 900(36)
   Bed Type 2-V2- Flat / 4-V TYPE BED
   Swing Over Bed (MM) 1000 1100 1300 1600
   Swing Over Cross Slide (MM) 800 900 1100 1400
   Spindle Nose (MM) 6
   Spindle Bore (MM) 100 / 125 / 150 / 175 / 200
   Spindle Speed (MM) 6 / 15 - 150

  Length ABC
  9 1000
  10 1300
  12 1900
  14 2500
  16 3100
  18 3700
  20 4300
  22 4900
  24 5500
  26 6100
  28 6700
  30 7300



Standard Accessories

• Hardened & Ground Bet Ways
• Chuck Plate
• Centre Adaptor
• Four Position Tool Post.
• Follow Rest
• Change Gear Set
• Tool Post Key
• Motor Pulley
• Steady Rest
• Face Plate



Extra Accessories

• Electric Motor
• Coolant Pump, Tank and Nozzle
• Taper Turning Attachment
• Splash Guard
• Dog Chuk, True Chuck
• Quick Change Tool Post / Rear Tool Post
• Reverse - Forward Switch, Vee Belts



* Above mentioned information are subject to change because of products improvement.
* All the parts shown in photo are not include in standard accessories.
