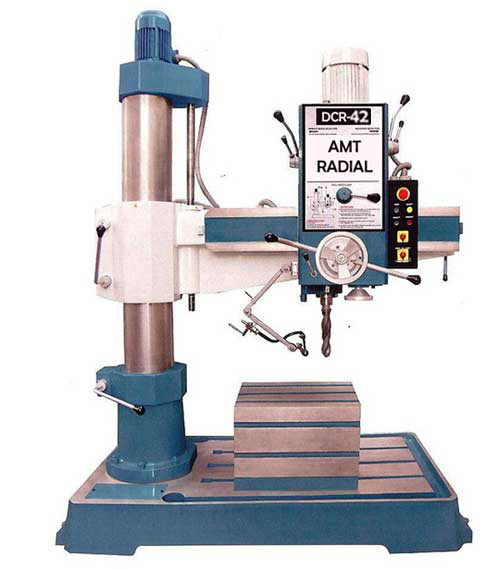

Radial Drilling Machines - AR 40 AG






  Drilling in M.S. 42 (15/8)
  Drilling in C.L. 50
  Rough Boring in M.S. 60
  Tapping in M.S. MT-4
  Spindle Speeds (RPM X Steps) 12 Steps 60,90,115,165,200,290,340,480,575,825,1005,1510,
  Diameter of RAM (quill) 80
  Spindle Autofeed Ranges (mm/rev.) 6 Steps 0.1, 0.15, 0.20, 0.27, 0.33, 0.52
  Max / Min Dist. Spindle nose to base 1155 / 400
  Vertical Travel of Arm 755
  Max / Min Dis. Spindle center to column 1025 / 275
  Horizental Travel of Arm 750
  Max. Drilling Radius 1137
  Machine Mesurement (L x B x H) 1600 x 850 x 2190
  Diameter of column 225
  Work Table 550 x 450 x 400
  Coolant Tank 770 x 430 x 145
50 liters
  Drill-head Moter 2HP (1.5 KW)
960 / 1440 RPM
  Lifting Motor (L x B x H) 1 HP (0.75 KW)
960 RPM



Standard Accessories


  •  2 HP & 1 HP Electric Motors.
  •  Electrial Panel Board
  •  Coolant Pump & Spout Assembly



Extra Accessories


  •  Drill Chuck & Arbor
  •  Work Table
  •  Tapping Attachment (Mechanical)
  •  Drill Vice



Column Assembly


  •  Double column type structure with Dai 225 mm and INSIDE RIBS for more rigidity and smooth movement



Arm Assembly


  •  Arm and Column are rigidly built with reinforcement ribs to reduce distortion, to give high capacity and long lasting accurancy





  •  All gears in gearbox are made up of NiCr Steel with hardness of 50-55 HRC with thickness of 15 mm



Shfts of gears


  •  All Shaft made of NiCr alloy steel with hardness 55 HRC

     All Four splines and six splines of shafts are GROUND on Spline Grinding Machine.



Lifting Nut


  •  4" long Lifting Screw nut made up of bronze metal





  •  Spindle, RAM(Quill) and Pinion are made up of NiCr steel with final hardness of 55 HRC



Autofeed System


  •  6 autofeed having near geometric progression for all processes to be done like drilling, reaming, boring etc.
  •  Overload sefety clutch system for tool protection
  •  Spindle auto-stop with tracel adjustment.
  •  Spindle Lock System for milling Operation.



Ram(Quill) Cylider Liner


  •  Head stock is provided with high grade cast iron cylinder liner like in automobile engines for easy sliding movement of RAM(Quill) and very long life. Also it ensures
     interchangeability when replacing after wear out.





  •  More Wider base for better working area
  •  In-built coolant tank of 50 liters
  •  Rigid box type construction
