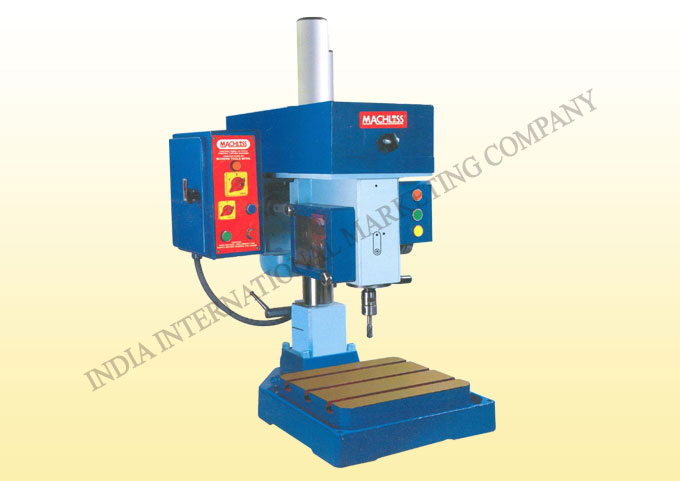

Machless Pitch Control Tapping Machine







SALIENT FEATURES



•  Closed grained cast iron ribbed machine parts, inimize vibration and distortion.
•  All moving parts are hardened and ground for long life.
•  Bore honed to give high accuracy and close tolerance.
•  Rack pinion also provided with feed friction clutch. These are designed to be idle on encounter of any obstacle or meeting any wrong point on tapping.
•  Hardened change gears controls the pitch, which gives precise and rapid production of high accuracy. This reduces the set lime and increase production.
•  Main spindle pulley mounted with manually adjustable safety clutch.
•  The change gears are used over and over again. This way conventional lead screw and nut are replaced; which have a poor repeatability and short Life span.
•  Threads are never fractured or over cut due to elimination of excessive thrust force of feeding spindle.
•  Tapping strokes are adjustable for high accuracy automatic reversing which is specially important for blind hole tapping applications.

•  Capacity varies according to pitch material, type of thread etc.
•  Optional pully available subject to material and thread.
•  Standard equipments Electrical panel, Electrical motor, Pully, V-belt & Two set of Gears for any pitch required.





Specifications





    PARTICULARS         MODELS
    MACH -01.06 MACH -01.10 MACH02.20 MACH 03-30
  Tapping cap in steel
incastiron
6MM
8MM
10MM
12MM
20MM
22MM
30MM
33MM
  Spindle travel 40MM 45 MM 65 MM 70 MM
  DISTANCE BETWEEN SPINDLE CENTRE TO COLUMN 170MM 210MM 260MM 285MM
  VERTICALTRAVELOF TAPPING HEAD 390MM 410MM 450MM 460MM
  COLUMN DIA 58MM 74MM 87MM 98MM
  SPINDLE SPEEDS 930-1320-1825 400-750-1510 157-280-510 50-105-216
  MOTOR RATING KW HP .37
.5
0.75
1
1.1
1.5
1.5
2
  NET WEIGHT KG 95 125 220 260
  TAPPER IN SPINDLE May vary from morse tapper (MT) size to collet system
depending on job requirements.
  BASE WORKING AREA 220x205MM 230 x 240 MM 345 x 385 MM 360 x 400 MM
  FLOOR AREA REQUIRED 285x410MM 320 x 490 MM 470 x 610 MM 500 x 655 MM
  STANDARDTAPPING INMM 1
PITCHES 1
INTPI

1
.35,.4,.5,.6,.7,.8,
1MM,20,24,32,
40,48,56,64
0.5,0.6,0.7, 0.75,
0.8,0.9,1.0,125,1.5,
18,20,22,24,26,27,
26,32,36,40
1.0,125,1.5,115,
1.8,2.0,2.5,
10,11,11.5,12,13,
14, 16, 18,20,22
1.5,115,1.8,2.0,
2.5,3.0,3.5,4.0,
7,8,9,10,11,
12, 13,14
  MINIMUM NO OF STROKES   40 15 6
