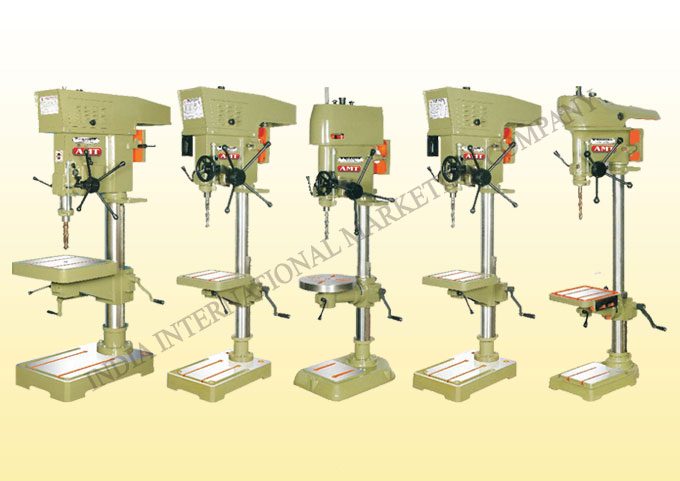

Drilling Machines - AMT Precision Pillar Drilling Machine







General Features :



•  Main spindle and pinion made from EN steel by forging.
•  Column, arm, work-head & gears made from finest closed grain cast iron; while spindle Ram trim Alloy steel.
•  Main spindle run out is checked for accuracy as per IS 2199.
•  For the smooth sliding of sliding arm, special 'slide-reliever-slots' are given.
•  All moving parts are fine-finished with grinding to a close tolerance.
•  International technic of 'Taper wedge setting'. for complete slide-setting instead of normal one point setting.
•  Quality bearings with grease bath, so for permanent oiling.
•  Main gear and pulley are perfectly balanced.
•  Powder coated accessories for longer life and prevention of corrosion and pillage associated with usual chrome plating.





Model Code System



•  P = Pillar Drill m/c
•  19/25/40 = Drilling capacity
•  S = Square Head Model
•  R = Round Head Model
•  L = Long Spindle Travel
•  A = Autofeed Model
•  X = Xtra Heavy Model





SPECIFICATIONS





  Specification  40A  40   25   25 20
  Tilting working table FIXED FIXED Upto 360 FIXED Upto 360
  Drilling capacity 40mm 40mm 25mm 25mm 20mm
  Pillar Diameter 135mm 121mm 92mm 92mm 74.30mm
  Spindle nose to table distance 495mm 595mm 645mm 660mm 650mm
  Distance from Spindle nose to base distance 1000mm 1050mm 1000mm 1045mm 900mm
  *Autofeed speed : (applies to PSL-40A only) 0.04 or 0.08
  Distance from spindle center to pillar surface (in mm) 380 (Max.) 320 (Max.) 250 (Max.) 250 (Max.) 200 (Max.)
  Table travel 500mm 480mm 480mm 480mm 200mm
  Taper in spindle MT-4 MT-4 MT-3 MT-3 MT-2
  Number of Speed 8 speed 8 speed 8 speed 8 speed 8 speed
  Range of speed (RPM) 60 to 2000 70 to 2000 70 to 2000 130 to 2600 80 to 3500
  Table Size (in mm) 490 x 490 410 x 410 350 DIA. 330 x 330 260 x 260
  Base Size (m/c Area in mm) 820 x 490 440 x 715 255 x 310 365 x 575 470 x 320
  Overall Base Size (in mm) 825 x 495 445 x 720 425 x 670 370 x 580 490 x 310
  Spindle Travel 250mm 250mm 250mm 180mm 130mm
  Pillar Length 1475mm 1450mm 1400mm 1410mm 110mm
  Overall height with pulley guard 1840mm 1860mm 1780mm 1730mm 1420mm
  V-Belt section B-74" B-59 B-51 B-52" A-42"
  Weight (Approx.) 500 Kgs 325 Kgs 250 Kgs 225 Kgs 110 Kgs
  Motor 1440 RPM 3 Phase 440 Volts 2 H.P. 1.5 H.P. 1 H.P. 1 H.P. 0.5 H.P.
  Shipping wooden case inner size LxWxH 1200x540
x1860 mm
860x460x
1580 mm
690x460x
1550 mm
850x450x
1770 mm
660x380x
1440 mm





STANDARD ACCESSORIES

•  Motor Pulley
•  Tapper Drift
•  Manual Book
•  Drill-bit angle gauge





EXTRA ACCESSORIES

•   Electric Motor
•  R & F Switch
•  Drill Chuck
•  Arbour
•  Key-way Compound Slide
•  Coolant Pump with tank
•  Drill Vice
•  Motor Belt
•  Machine Lamp



Note : The design & specifications of our products shown in catalogue are subject to change for improvement without any prior notice
