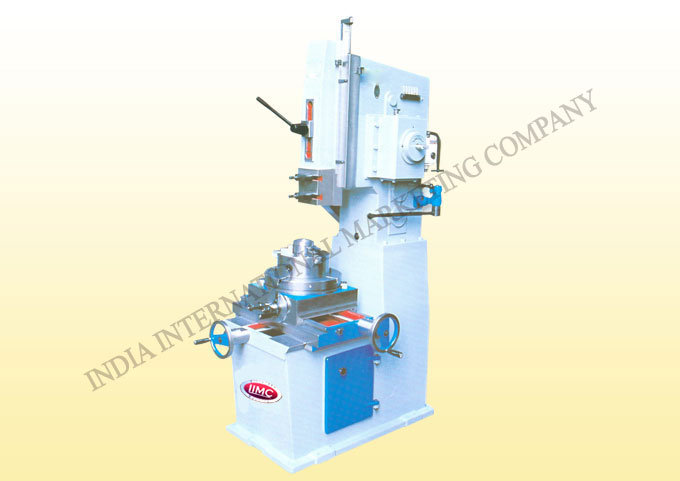

IIMC Slotting Machine







FEATURES



•  All main parts such as machine body, saddle and machine base are provided with heavy and sturdy design to give higher rigidity of the machine.
•  All hand wheels, clutch lever and switches conveniently grouped at the front of the machine for convenient operation of the machine.
•  All working campanents af the machine are lubricated by Independent lubrication system.
•  Work table, slideways and screw have devicad with telescopic cover and centralized lubricating system to prolong the life of the machine.
•  The ram is well ribbed and is the ram quit sturdy. An adjustable tapergib has been provided to compensate for waar in the ran guides. The rom can be tilted by 5     degrees.
•  A Mechanical clutch is provided in the machine, which enable tha operator to stop / change thr gears, at any time and the position even whan the machine is in     motion.
•  The rotary table is accurately indexed at 360 mounted on compound slide, giving longitudinal and cross movement.





TECHNICAL SPECIFICATIONS OF SLOTTING MACHINES



 DESCRIPTION UNITS SLM - 150 SLM-25O SLM-300
  Maximum Strake of Ram mm 150 250 300
  Rotary Table Area mm 275 375 500
  Crass Travel at the Table mm 240 280 310
  Longitudinal Travel of the Table mm 240 280 310
  Cutting Speed at Ram p/min. 64-90 32-50 26-36
  Adjustment at Ram mm 180 225 230
  Indexing Ratio - 1:40 1:40 1:40
  Tilting Angle at Ram* Deg. 5 5 5
  No. of Ram Speed Nos. 2-3* 2-3* 2-3*
  Distance from Table top to body
  guides lower end mm 350 425 475
  Distance from Teal Holder face to
  body (Over hang) mm 280 330 380
  Main Drive Motor H.P. 1.5 2 3
  Net weight of Machine Kgs. 900 1200 1800
  Grass Weight at Machine Kgs. 1050 1400 2050
  Length x Width a Height at Machine mm 1180 x 870 x 1660 1330 x 950 x 1860 1500 x 1050 x 1960
  Length x Width a Height at Packing case mm 1250 x 940 x 1830 1400 x 1020 x 2030 1570 x 1120 x 2130





STANDARD ACCESSORIES



Complete deviding head with rotary table, One set of complete tool holder,
One handle for stroke adjustment, Vee-belts guards, One railing set for electric motor.





OPTIONAL ACCESSORIES



Self cantring chuck, Chuck back plate, Lubrication system, Electric motor, Starter,
Machine bellows, Set of slotting bars, Special ratchets, Vee belts, M/C. Lamp.





SPECIAL ACCESSORIES



Tilting head assy, Ropid feed for cross & long. Movement, Auto tool lifting.
