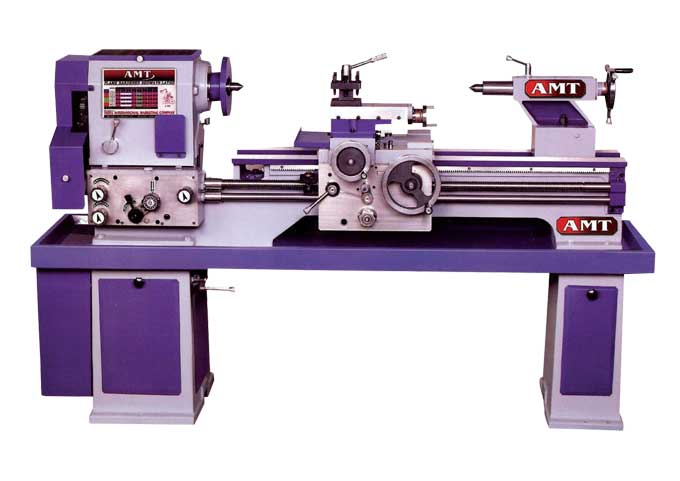

Lathe Machines - AMT Under Counter (4.5' & 6')












Standard Accessories



Hardened & ground bed ways, four position tool post, Change gear set, Chuck plate Tool Post key, Centre adaptor, Motor pulley,





Extra Accessories



Electric motor Dog chuck, true chuck Coolant pump, tank and nozzle Quuick change tool post/ rear tool post taper turning attachment Reverse- forward switch, vee belts Splash guard





Salient Features



•  Bed is made from 25 grade cast iron of 180 bhn hardened strictly
•  Boring of head stock is done on WMW boring machine fitted with induction hardended and ground spindle made from alloy steel.
•  Apron is totally enclosed oil bath system with lever type arrangment for automatic feeds.
•  Double screw norton gear box :- provided as time saver equipmentwith separate thread & feed shaft. thus, feed & thread gears could be
•  changed rapidly and decreases the wear and tear in half nut and lead screw.
•  Hexagonal shaped tail stock with hardened and ground tail stock spindle made from alloy steel having external and internal grinding
•  Oil dipped slid box
•  Oil dipped norton gear box with 8 speed spindle head
•  All pulley's are balanced on balancing machine
•  Double bearing in the front of head stock (total 3-bearrings in the head)





Technical Data



    Technical data and specifications for medium and heavy duty lathe (Geared V-Belt Driven)
  Specification Medium duty (Under-counter)
  Bed Length 4-1/2 feet 6 feet
  Bed type 2 V 2 flat 2 V 2 flat
  Bed width 275(11") 275(11")
  Height of centre 9" 9"
  Swing over bed 350mm 350mm
  Swing over cross slide 200mm 200mm
  Admit between centre 487mm 940mm
  No.of spindle speed/8 8 8
  RPM(low/high) 45-750 45-750
  Motor Power 2hp 2hp
  Wight(approx) 700kg 800kg





Download Catalog in PDF Format
