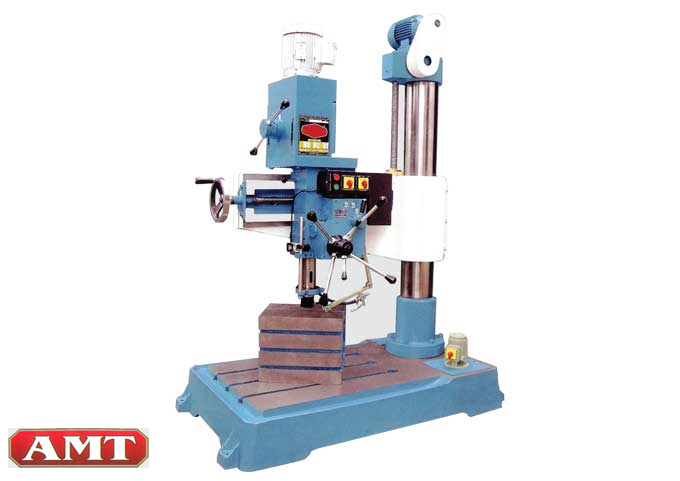

Radial Drilling Machines AR 40AG




Salient Features


  •  Closed Grain Cast iron Coloumn, arm, work head & gears.
  •  Parts Finished on imported grinding machine all moving parts Finished to close tolerance.
  •  Parts Properly balanced prior assemly.
  •  Main Spindle & pinion mode on DM forged steel.
  •  Alloy steel spindle rom.



Standard Accessories


  •  Motor pulley in all machines.
  •  Complete Electrical Suitable for 415 Volts 50Hz 3 phase AC Supply (Electrical Panel Board & Switched) in Model R40BA & P40AA



Extra Accessories


  •  Electrical Motors
  •  Drill Chuck & Arbor
  •  Tapping Control panel board
  •  Vee Belts
  •  Work table
  •  Coolant pump with coolant tank
  •  Keyless drill chuck & arbor
  •  Extra long Column



Technical Specifications


  Drilling CapacityDrilling Capacity 40
  Spindle taper MT-4
  Spindle travel 250
  Spindle speeds (rpm x step) 88-2600x8
  Spindle autofeed ranges (mm/rev.) 0.05 & 0.09
  Max/min dist.spindle nose to base 850 / 250
  Diameter of colum 170
  Work table 300x300x385
  Drill-head / elevating motor 1.5hp/0.5hp
  Built-in coolant tank yes



Download Catalog in PDF Format
