Standard Accessories

Hardened & ground bed ways, four position tool post, Change gear set, Chuck plate Tool Post key, Centre adaptor, Motor pulley,

Extra Accessories

Electric motor Dog chuck, true chuck Coolant pump, tank and nozzle Quuick change tool post/ rear tool post taper turning attachment Reverse- forward switch, vee belts Splash guard

Salient Features

•  Bed is made from 25 grade cast iron of 180 bhn hardened strictly
•  Boring of head stock is done on WMW boring machine fitted with induction hardended and ground spindle made from alloy steel.
•  Apron is totally enclosed oil bath system with lever type arrangment for automatic feeds.
•  Double screw norton gear box :- provided as time saver equipmentwith separate thread & feed shaft. thus, feed & thread gears could be
•  changed rapidly and decreases the wear and tear in half nut and lead screw.
•  Hexagonal shaped tail stock with hardened and ground tail stock spindle made from alloy steel having external and internal grinding
•  Oil dipped slid box
•  Oil dipped norton gear box with 8 speed spindle head
•  All pulley's are balanced on balancing machine
•  Double bearing in the front of head stock (total 3-bearrings in the head)

Technical Data

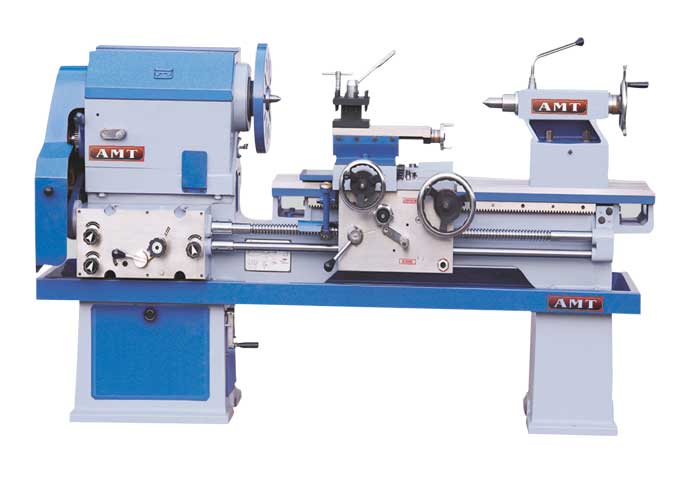

Technical data and specifications for medium and heavy duty lathe (Geared V-Belt Driven)
	Specification	Heavy duty Lathe / extra heavy duty
	Bed Length	7' to 12'	7' to 12'	9' to 12'	9' to 12'
	Bed type	2 V 2 flat	2 V 2 flat	4V	2V & 2 flat/4V
	Bed width	325 mm	375 mm	375	400 / 450 / 500 / 600
	Height of centre	254 mm	305	375	450 / 500 / 600 / 700
	Swing over bed	495 mm	580	730	850 / 950 / 1150 / 1350
	Swing over cross slide	200mm	400	550	700 / 800 / 950 / 1150
	Admit between centre		1000 mm to 4500 mm
	No.of spindle speed/8	8	8	8	8 or 6
	RPM(low/high)	25-500 rpm	25-500 rpm	25-500 rpm	25-500rpm
	Motor Power	3hp	3/5hp	5hp/7.5hp	7.5hp / 10hp
	Wight(approx)	1300-1800kg	1500-2200kg	1500-3000kg	2500-600kg
