Radial Drilling Machines







Extra Accessories

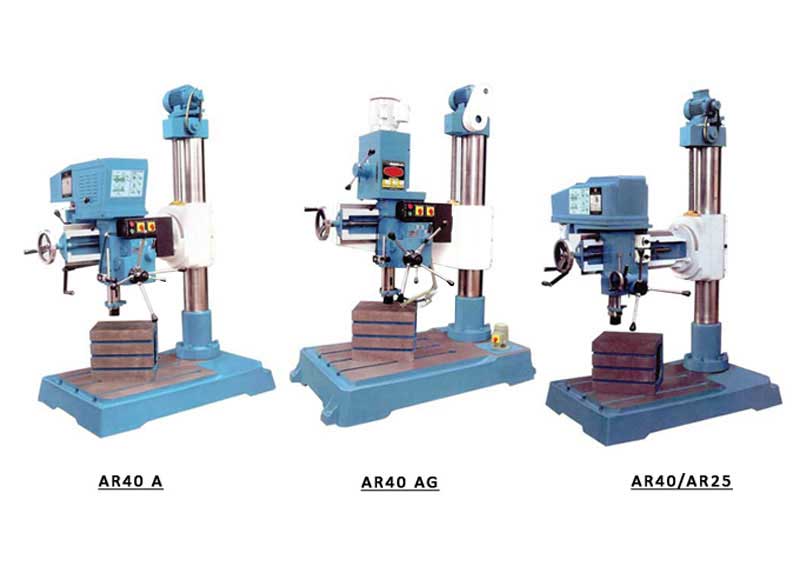

  •  AR25/AR40: Belt Driben & Fine Feed
  •  AR40A : Belt Driben & Auto Feed
  •  AR40AG : All Geared & Auto Feed





Salient Features



  •  Closed Grain Cast iron Coloumn, arm, work head & gears.
  •  Parts Finished on imported grinding machine all moving parts Finished to close tolerance.
  •  Parts Properly balanced prior assemly.
  •  Main Spindle & pinion mode on DM forged steel.
  •  Alloy steel spindle rom.





Standard Accessories



  •  Motor pulley in all machines.
  •  Complete Electrical Suitable for 415 Volts 50Hz 3 phase AC Supply (Electrical Panel Board & Switched) in Model R40BA & P40AA





Extra Accessories



  •  Electrical Motors
  •  Drill Chuck & Arbor
  •  Tapping Control panel board
  •  Vee Belts
  •  Work table
  •  Coolant pump with coolant tank
  •  Keyless drill chuck & arbor
  •  Extra long Column

Technical Specifications



  DESCRIPTION AR40AG AR40A AR40 AR25
  Drilling CapacityDrilling Capacity 40 40 40 40
  Spindle taper MT-4 MT-4 MT-4 MT-3
  Spindle travel 250 250 250 175
  Spindle speeds (rpm x step) 70-1225x9 88-2600x8 88-2600x8 105-2650x8
  Spindle autofeed ranges (mm/rev.) 0.05&0.09 0.05&0.09 Flne feed Flne feed
  Max/min dist.spindle nose to base 950/250 850/250 850/250 860 / 100
  Diameter of colum 180 170 170 130
  Work table 300x300x385 300x300x385 300x300x385 265x200x200
  Drill-head / elevating motor 1.5hp/1hp 1.5hp/0.5hp 1.5hp/0.5hp 1.5hp/0.5hp
  Built-in coolant tank Yes Yes Yes No






Download Catalog in PDF Format
