TRAVEL

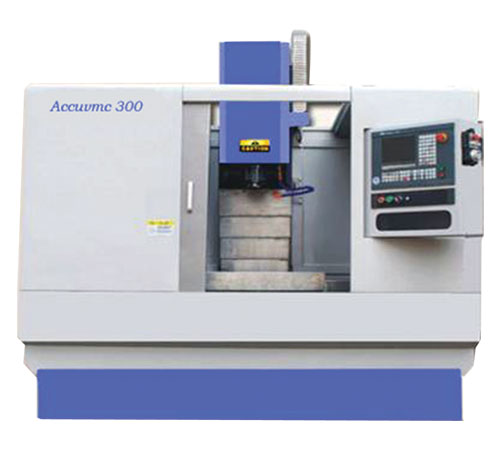

ACUVMC-300

X Axis

300 mm

Y Axis

250 mm

Z Axis

300 mm

Distance between Table top and spindle nose

50-350

Table Size

450x260 mm

Maximum Load on Table

100 Kg

SPINDLE

Spindle Motor Capacity

2HP

Spindle Speed (RPM)

3000

Spindle Nose Taper

BT-30

Accuracy

Positioning accuracy

0.010

Repeatability

0.010

FEED RATE

Rapid Travers X.Y.Z

5 m

X. Y. Z

0-5000

POWER

Transformer for Drives

220V, 3 Phase

Main Supply

415V+ 2% 50 Hz

CNC

Control System

Siemens & Hust

Servo Motors

4 Nm X, Y,Z

SLIDES

Slides

Linear motion guide ways
Taiwan Make

Ball Screws X, Y and Z axis

Taiwan Make

Lubrication

Automatic

Chip Tray & Coolant Tank

75 Ltr

MACHINE DIMENSIONS

Height x Length x width

2000 x 1650 x 1500

Machine Weight (approx)

1500 Kg
