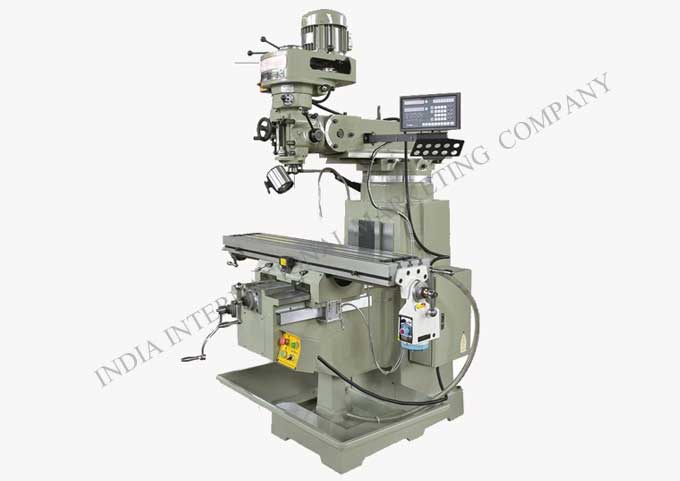

Why Accucut Milling Machines?

Milling Machines have been designed to give its user with accurate and precise results. It has 55 degree dovetail Y-Axis and Z-axis guide way, making the machine more stable and easy to adjust. The guide way on saddle is lined with TF wearable material. The worktable surface and 3 axis guides way are hardened and precisely ground.

Salient Features

• Adjustable double Nut design for minimal backlash
• Double Lock on saddle, Ram & Knee
• X-axis & Y-axis lined with Turcite B Coating.
• Double speed motor for high RPM
• Built in standard coolant tank in the base of machine
• Electrical panel box fuse, overhauling
• Relays etc. of Siemen’s make with ‘CE’ mark
• Hardened & Ground X & Y slide ways

SPECIFICATIONS	NO:3	NO:4
Table size(mm)	254x1270 (10"x50")	254x1370 (10"x50")
Longitudinal Travel (mm)	850	980
Cross Travel (mm)	385	400
Vertical Travel(mm) 3 numbers	380	400
Table T-slots(mm) 3 numbers	16x3x63	16x3x63
Spindle Motor (H.P.)	3	3
Spindle Speed (RPM)	16 Steps / 50-3500	16 Steps / 50-3500
Spindle Taper	R8	R8
Spindle Nose to table Top (mm.)	0-428	0-428
Spindle Centre to Column Surface (mm).	200-680	200-680
Quill Travel (mm)	127	127
Auto Quill Feeds (per revolution)mm	0.40/0.08/0.15	0.40/0.08/0.15
Head Swivel	(RxL)90 degree / (FxB) 45 degree	(RxL)90 degree / (FxB) 45 degree
Ram Travel (mm)	480	480
Net Weight (kgs.)	1280/1380kgs	1280/1380kgs
Y – Axis	Dovetail Guide Way	Dovetail Guide Way
Z – Axis	55dg. Swallow tail or Square Guideway	55dg. Swallow tail or Square Guideway

Standard Accessories

• 2-axis Sino DRO
• Coolant equipment
• Machine lamp
• Tool box
• Instruction manual
• Lubrication system
• Draw bar
• Meehanite castings
• Electric control panel
• Chip cover(rubber) front & back

Optional Accessories

• 8 Pcs R8 Collet Set
• 52 Pcs Clamping Kit
• Milling Vice – 6 Inches
• Boring Head
• 10”Rotary Table

Specifications are not binding and are subject to modification and change without notice. The standard and optional accessories listed are provisional. Final list will be as per our offer.

RIGID. RUGGED, RELIABLE

These high precision turret ram type milling machines are built with proven designs, tight engineering standards and quality materials. In addition to these there are features such as hardened ways and turcite coating on saddle ways. These make the machines rigid and reliable.
