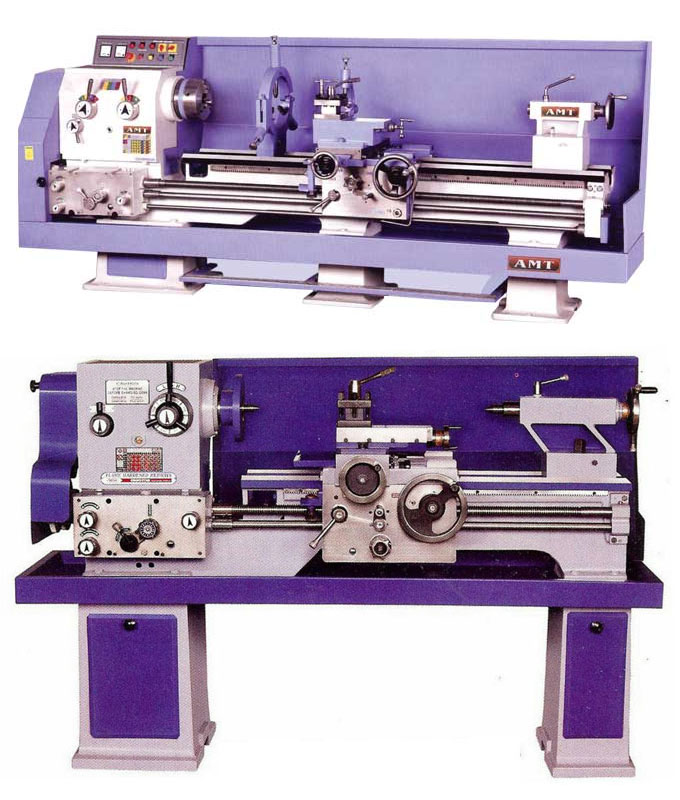

All Geared Lathe - AMT 225 (4.5' & 6')












Salient Features



•  Bed is made from 25 grade cast iron of 180 bhn hardened strictly
•  Boring of head stock is done on WMW boring machine fitted with induction hardended and ground spindle made from alloy steel.
•  Apron is totally enclosed oil bath system with lever type arrangment for automatic feeds.
•  Double screw norton gear box :- provided as time saver equipmentwith separate thread & feed shaft. thus, feed & thread gears could be
•  changed rapidly and decreases the wear and tear in half nut and lead screw.
•  Hexagonal shaped tail stock with hardened and ground tail stock spindle made from alloy steel having external and internal grinding
•  Oil dipped slid box
•  Oil dipped norton gear box with 8 speed spindle head
•  All pulley's are balanced on balancing machine
•  Double bearing in the front of head stock (total 3-bearrings in the head)





Technical Data



    Technical data and specifications for all geared model
  Specification All Geared Lathe
  Length of bed 7' 9' 10' 12' 14' 16'
  Admit Between Centres 1000 mm         1600 mm 1900 mm 2500 mm 3100 mm 3710 mm
  Centre height over flat bed ways

267 mm

305 mm
  Swing over bed

525 mm

600 mm
  Swing over cross slide

300 mm

375 mm
  Width of bed

13"

15"
  Type of spindle nose

A 2-6

A 2-6
  Taper spindle speeds nos./ rpm/ range

08(30,85,160,285,400,545,785,1060.rpm)

  Nos. of threads/ rang for full norton gearbox Metric 17/0.5 mm to 15 mm pitch
    Inch 40 / 2 to 60 tpi
  Nos. of feeds/ rang for full norton gearbox Longitudinal 40/0.0066 to 2mm /rev of spindle
    Cross 40/0.0165 to 0.5mm /rev of spindle
  Weight nett/ gross 1500 / 1900kg 1650 / 2150kg 1900 / 2450kg 2050 / 2650kg 2350 / 2950 kg 2700 / 3400 kg
  Electirc motor of 5hp/ 2.25k.w. 3phase, 1440rpm



Standard Accessories (For all Greared)



Face Plate, carrier palte, steady rest, follow rest, dog/true chuck, taper turning attachment, cookant pump with tank and fittings, rear tool post with extended cross slide, electricals (motor, panel board, wirings,push button switches, v-belts and fittings), electrical switch shaft and chip guard.



Extra Accessories



• Electric Motor
• Dog Chuk, True Chuck
• Coolant Pump, Tank and Nozzle
• Quick Change Tool Post / Rear Tool Post
• Taper Turning Attachment
• Reverse- Forward Switch, Vee Belts
• Steady Rest
• Follow Rest
• Face Plate
• Splash Guard
